DELTA ROBOT

PROTOTYPING  ●  KINEMATIC DESIGN  ●  MECHANICAL DESIGN  ●  DIGITAL IMAGING  ●  LEADERSHIP

     More details on skills

Parallel arm robot with universal gripper and digital imaging for selective object pickup

3 month project at MIT, Spring 2019, Cambridge, MA, USA

Co-led a team of 9 mechanical, electrical, and aero/astro engineers

Arrow Down.png

CONTEXT

Rhythm is crucial to musical practice.  The Soundbrenner Pulse is a wearable that provides musicians with customisable tempos tapped directly onto the top face or programmed through the app.  Multiple players can also sync their devices to practice together.

02 Context 1.jpg

Wrap around effect

Soundbrenner worn over the chest

02 Context 4.jpg

Soundbrenner worn on the wrist

02 Context 3.jpg

Tapping the face to set the rhythm

02 Context 2.jpg

Programming rhythm via Soundbrenner's app

RESEARCH

The Soundbrenner Pulse produces rhythm through haptic feedback.  Strong haptic feedback is critical for louder musical environments or for instruments that produce more vibration when played.  I was tasked with optimising the design of the Soundbrenner Pulse to increase vibration strength.  I conducted extensive research on increasing vibration strength ranging from component configuration to material changes.

PROTOTYPING

I tested several methods of optimising vibration strength.  Various ERM vibration motors and component configurations were tested.  Structural components such as the device casing and the vibration motor housing were 3D printed using fused deposition and stereolithography.

04 Prototyping 1.jpg

Wrap around effect

Soundbrenner worn over the chest

04 Prototyping 2.jpg

Soundbrenner worn on the wrist

TESTING

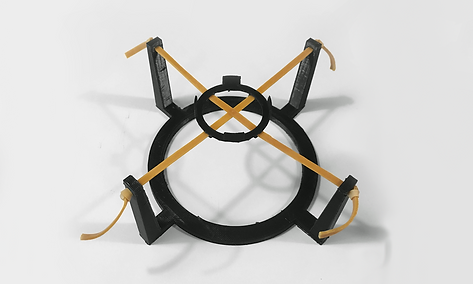

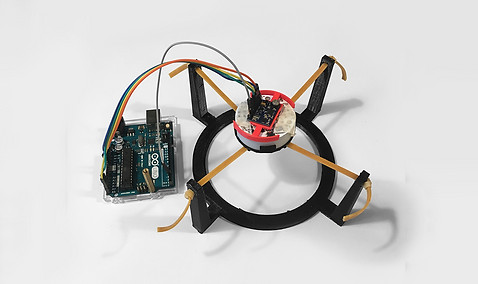

I designed a test jig to assess the relative vibration strength of each prototype.  The frame was 3D printed and connected to rubber bands to allow the prototype to vibrate freely in space.  An accelerometer was secured to the top of each prototype to detect the vibration strength.

05 Testing 1.png

Wrap around effect

Soundbrenner worn over the chest

05 Testing 2.jpg

Soundbrenner worn on the wrist
